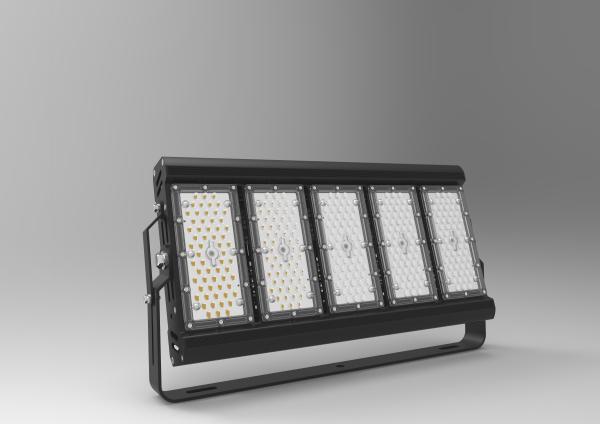

IP65 80W-250W LED Outdoor Flood Light OpBOX Series Aluminium Material

Brand Name : LUXSUN

Model Number : LUX-FLB-80/100/150/200/240/250

Certification : CE ROHS CB SAA

Place of Origin : China

MOQ : 1PC

Payment Terms : T/T, L/C

Supply Ability : 10000PCS/Month

Delivery Time : 15-20days

Packaging Details : 345*140*653MM

LED Chip : Lumileds 5050

CRI : >70 (>80, >90 available)

Efficiency : 170LM/W

CCT : 5000K (3000K, 4000K, 5700K available)

BEAM ANGLE : 30°/60°/90°/120°/60°x135°/85°x135°

POWER FACTOR (Typ) : ≥0.97

Material : Aluminium, PC

Color : Black (White)

LED driver : MEANWELL & Inventronics Driver

Input Voltage : 100-227V/AC, 50-60Hz

IK Grade : IK10

IP Rating : IP65

Dimming Options : 0-10v Dimming, DALI

Warranty : 5 years

Contact Now

OpBOX series IP65 80W-250W PROFESSIONAL SERIES HIGH OUTPUT LED FLOODLIGHT











Overview
OpBox LED flood light mainly designed for Area lighting an d Sports lighting Symmetric or asymmetric beam angle to satisfy the most application needsThe OpBox series is ideal illuminatingfor any outdoor areas as well as dramatically reducing energy consumption.

Main Features

  • The LED outdoor flood light is designed for backyard use and has an IP65 rating, making it weather-resistant and suitable for outdoor applications.
  • The lighting fixture features a high-quality aluminum housing that is durable and anti-corrosion, ensuring long-lasting performance.
  • It is dimmable, allowing you to adjust the brightness to suit your needs and save energy.
  • The LED outdoor flood light produces a luminous flux of 12,000 lumens, providing ample brightness for outdoor activities.
  • The beam angle is adjustable between 15 and 60 degrees, providing flexibility in light direction and coverage area.
  • It has a lifespan of up to 50,000 hours, ensuring long-lasting and reliable performance.
  • The LED outdoor flood light is suitable for various outdoor lighting requirements, including sports.



       IP65 80W-250W LED Outdoor Flood Light OpBOX Series Aluminium Material

Product Parameter

Part number LUX-FLB-80/100 LUX-FLB-150 LUX-FLB-200/240 LUX-FLB-250
Power 80W/100W 150W 200W/240W 250W
Voltage 100-277V
Angle 30°/60°/90°/120°/60°x135°/85°x135°
Lumen 13,600lm/17,000lm 25,500lm 34,000lm/40,800lm 42,500lm/46,750lm
Efficiency   170lm/W
CCT   3000K/4000K/5000K/6000K/6500K
CRI   70/80/90
IP   65
IK   10
Operation temperature   -30º to +45ºC
Dimmable Options   DALI, 1-10V
Warranty   5 Years
Life span   50,000hrs





IP65 80W-250W LED Outdoor Flood Light OpBOX Series Aluminium Material



IP65 80W-250W LED Outdoor Flood Light OpBOX Series Aluminium Material















High Performance Lighting:

High output Lumileds LED Chips and Mean Well control gear ensures you will save on both energy and maintenance costs while meeting the
highest performance standards.





Quick & Easy Installation:

Engineered from corrosion resistant aluminium alloy, the low profile, perfectly balanced luminaire is incredibly lightweight and takes just minutes to instal by a

single person. The unit can be held in one hand, whilst attaching the unit to the single source hanging fixture, with the other.





Controlled Lighting:

For light only when required, there are a range of easy fit, control options. Choose from PIR, microwave, daylight, DALI-2 and wireless options. Simply plug

the unit in the centre of the light fixture and you are good to go in seconds, with no complex rewiring, or counterbalances required. For large installations,

with multiple luminaires, the remote control features a bulk upload feature. This allows multiple lights to be programmed in one go. And, if for any reason your

floor layout changes, our sensors are interchangeable, making it easy to re-apply your lighting control.
LEDs, extending their long lifespan.







Simply Optimal Heat Sink
The heat sink of OpMill family is made of single integral piece of aluminum. It ensures the OpMill will not flicker when you run over
it and ensures maximum rigidity for all demanding applications.This design ensures the entire body to quickly dissipate heat from







Built to last:

A Linear High Bay is a long term 10-to-20-year investment so the Area Bay has not only been engineered to last but also designed to quickly accommodate upgrades and replacement parts when required.

With a 50,000 LED lifetime, and a 5 years warranty, and low running costs, you can rest assured that the Area Bay is a smart lighting investment.



Why Choose Us

1. We use Dialux software to simulate the luminous effect, so as to make sure our proposals meet clients' requirements.

2. Our PMC department follows the production and we can report to you at any time about the production by photos and videos.

3. We have IQC, IPQC, and OQC during the production, guarantee the products.

4. We have a large capacity and quickly finish the cargos in a short time with our experienced production team.
